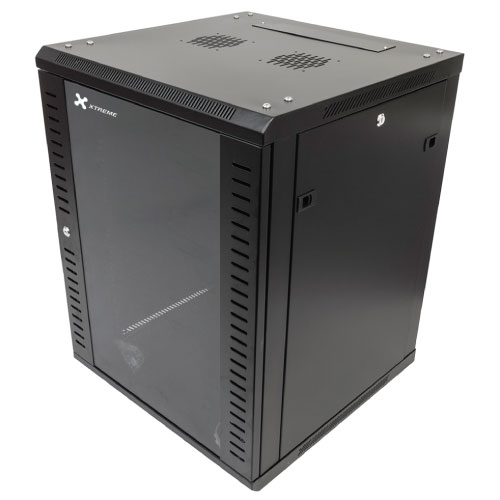

XTREME XR15UN WALL MOUNT 15U NETWORK RACK CABINET

Overview

Here’s an overview of its key features:

15U rack capacity — suitable for mounting standard 19-inch rack-mount equipment.
Wall-mount design — saves floor space and is suitable for offices and network installations.
19-inch standard compatibility — accommodates compatible switches, patch panels, routers, DVR/NVR equipment, and other rack-mount devices.
Secure enclosure — helps protect networking equipment from dust, accidental contact, and unauthorized access.
Front glass/transparent door — allows equipment status to be viewed without opening the cabinet.
Cable management — provides organized routing for network and power cables.
Ventilation — designed to allow airflow around installed equipment.
Lockable door — provides additional physical security.
Suitable for structured networking — useful for LAN, CCTV, fiber/network termination, and small server/network installations.

Specifications

Brand: Xtreme

Model: XR15UN

Dimensions: 600mm (width) × 600mm (depth) × 800mm (height) (15U)

Configuration: 1 fixed shelf + 2 fan + 13 Amp 6-way PDU UK + 1 pack of screws + rear wall-mounted design + front tempered glass door with small round lock

Material Quality:

Material: SPCC cold-rolled carbon steel plate

Front door: tempered glass with small round lock

Rear door: wall-mounted type

Side doors: quick-release type

The tempered glass facilitates observation of equipment operating status

Material Thickness: 1.5mm for vertical columns, 1.0mm for cabinet body

Bearing: Maximum Capacity 100KG

Way to Install: Wall-mounted installation: Secure the cabinet to load-bearing walls using expansion bolts for enhanced stability

Pigment:

Pigment: The standard color is black RAL 9004

Black is a classic color that blends seamlessly with the overall decor in computer room

Levels of Protection: The indoor cabinet has an IP20 protection rating

Warranty: No Warranty
